CAEPIPE
User's Manual
×

EXPORT MATERIAL LIBRARY

CAEPIPE can export material properties to a batch text file with the extension .mlb (material library batch file).  The text file may be edited using a text editor / using MS Excel.  The edited text file may be read back into CAEPIPE by using the Import feature.

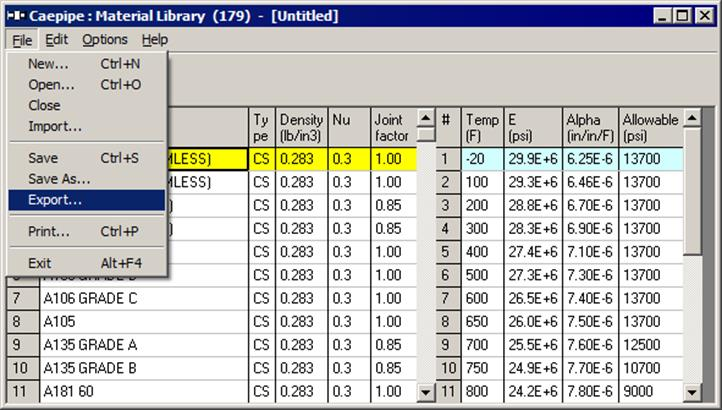

To export the material properties, select the menu command File > Export from the Material Library Layout window.

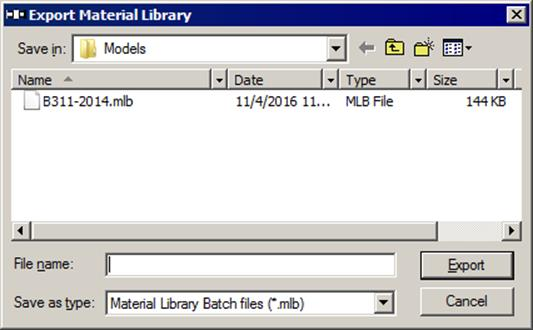

The Export Material Library dialog is shown. Click on the Export button to write to the batch file.
