Viewpoint (F4).

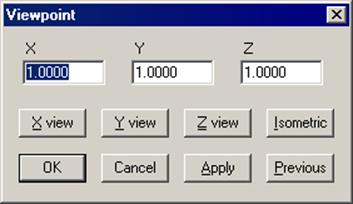

Use this command to set the graphics viewpoint. Several useful buttons inside the dialog allow you to change viewpoint to a preset one.
For example, if you want to see the “plan” view (Y-vertical), click on “Y view” button.
