Center of Gravity

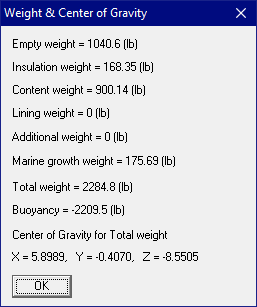

This command displays the center of gravity and total weight of the piping system as modeled. This information can be useful when you are comparing the weight of this model with total weight obtained from another source.
The Total weight is the sum of empty weight, insulation weight, content weight, lining weight, additional weight and marine growth weight. When Wave Load 1 is defined and applied to the piping system, the Marine Growth Weight and Buoyancy will be calculated based on the parameters entered for Wave Load 1, as shown above.
