Check Branch SIF
CAEPIPE will validate Branch SIFs defined in the stress model against those SIFs applicable for the selected piping code before saving the model. If any Branch SIF defined in the stress model does not match with those applicable for the piping code selected, an option is given to change that Branch SIF before saving the model.

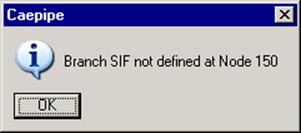

In addition to the above check, this feature will check the layout for Branch Points without Branch SIFs defined and report the same to the user as shown below.
