Hanger Report

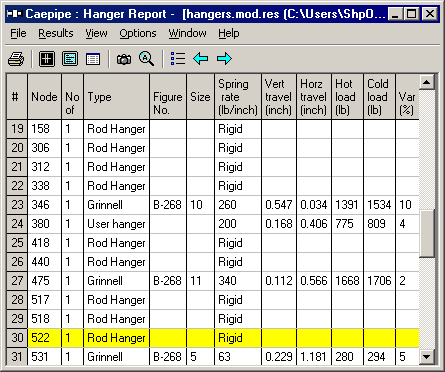

Starting from CAEPIPE Version 13.20, a new feature has been introduced to automatically compute and report the Vertical Angle when a “Connected to” node is specified for a Hanger (including Spring Hanger, Constant Support Hanger, Rod Hanger, and User Hanger). For instance, in the following report, a Hanger at Node 100 is defined with a “Connected to” node. As a result, the report will include the "Vertical Angle," which is internally calculated based on the Deformed Coordinates for Operating Load Case 1, the "Connected to" node, and the Hanger coordinates.
