User-Defined Allowables

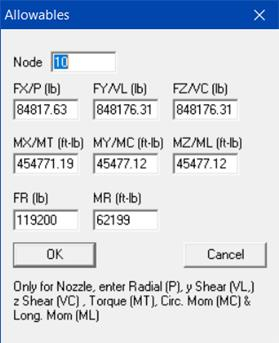

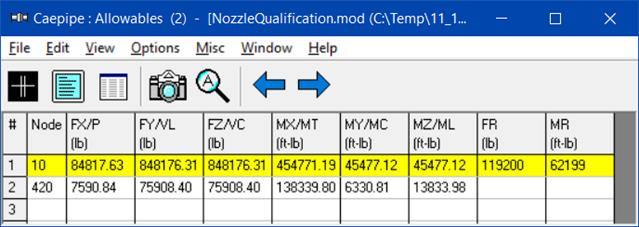

CAEPIPE allows you to define "User Allowables" for Anchors, Generic Supports, Nozzles and Restraints through Misc> User Allowables.

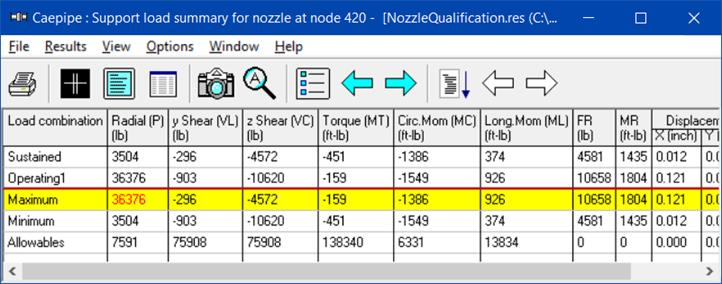

The allowables thus defined are compared against calculated loads and printed in Support Load Summary outputs.
If the calculated loads exceed the allowable, they are highlighted in red.
