List (Ctrl+L)
List is a powerful feature that helps you see itemized lists of information in the model. All input data can be viewed through this command. For example, you can view all elements and data types specified in the model, list Coordinates of the nodes of the model, Specified displacements, Nozzle stiffnesses, Branch nodes, Threaded joints, Pumps, Turbines, Compressors, Materials, Sections and Loads, etc.
This is a useful tool to verify information after modeling is finished, for example, to check whether all bends have the correct bend radius or whether limit stops are aligned in the correct directions or how many anchors have been specified in the model and so on.

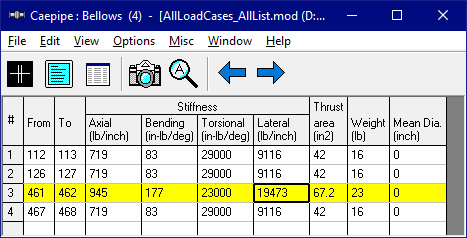

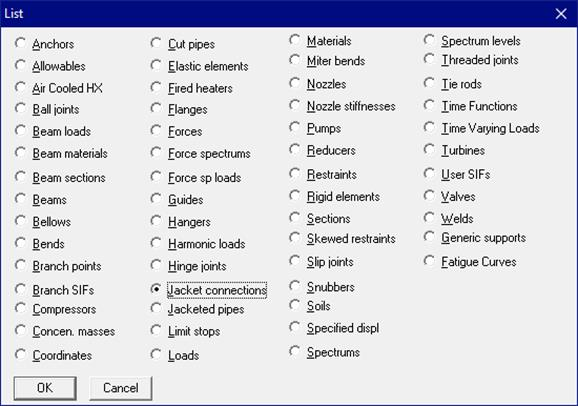

This command is “intelligent” in that the list dialog shows only those items that exist in the model. Consequently, List can display a small list or as comprehensive a list as shown in the next figure.
You can navigate through the different itemized lists by clicking on the two blue-colored arrows on the toolbar.
