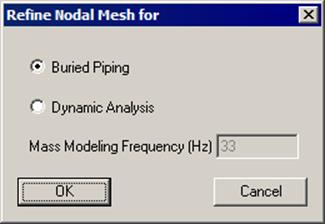

Refine Nodal Mesh
This powerful command allows you to refine the Nodal Mesh for buried piping as well as for Dynamic Analysis.
Refine Nodal Mesh for Buried Piping
See section “Buried Piping” in the Technical Reference Manual for more details on “Refine Nodal Mesh for Buried Piping”.
Refine Nodal Mesh for Dynamic Analysis
The purpose of this feature is to ensure that there are a sufficient number of mass points for an accurate dynamic model for the dynamic loading under consideration.
Intermediate mass points along a span are generated based on the mass modeling frequency defined by the user. See section “Refinement of Nodal Mesh for Dynamic Analysis” in the Technical Reference Manual for more details.
