Cadmatic to STAAD.Pro

Input File: Cadmatic Neutral File (.n)

Output File: STAAD.Pro File (.std)

PD2STPRO, a stand-alone 3D Plant Design-to-STAAD.Pro Interface program, is used to transfer structural geometry, their section and material properties, support conditions etc. from Cadmatic Oys 3D Plant Design software CADMATIC to the structural analysis software STAAD.Pro.

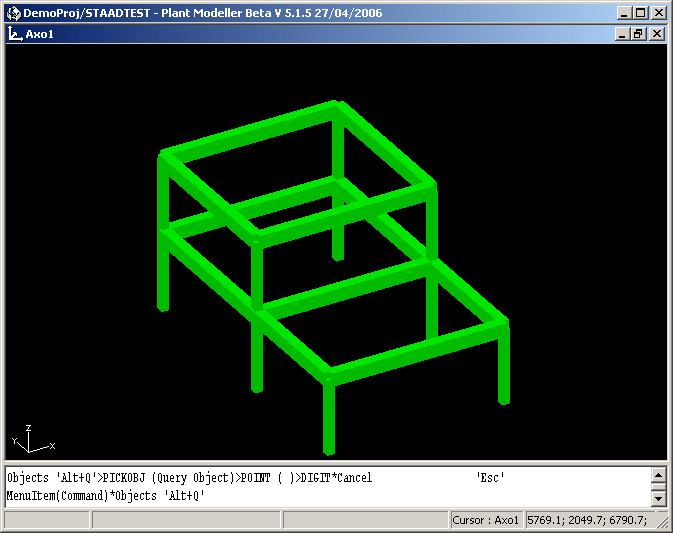

Structural layout in Cadmatic

sst cadmatic to staadpro translator structural model as seen in cadmatic graphic image 1

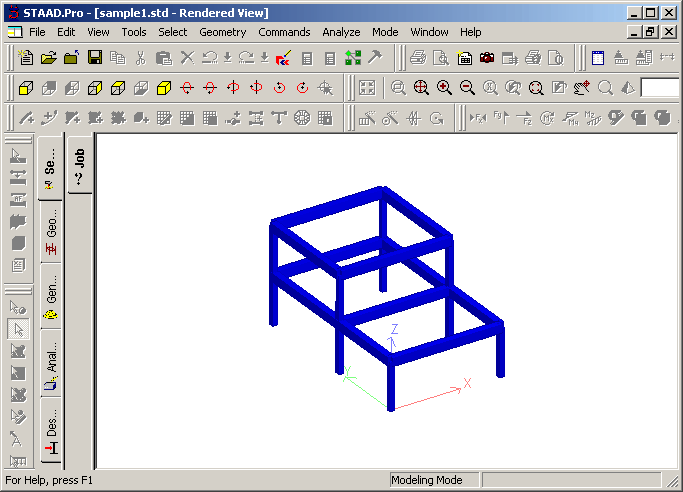

Analysis model in STAAD.Pro

sst cadmatic to staadpro analysis model as seen in staad pro after conversion graphic image 2

PD2STPRO has two parts. The first is the Neural File creation program, which converts structural section elements modeled in the 3D Plant Design software CADMATIC into an intermediate neutral file. The second part is the windows executable PD2STPRO.exe, which reads this intermediate neutral file and maps it against the Material mapping DB and Section mapping DB to identify the valid STAAD.Pro section and material names that correspond to the CADMATIC section and material specifications. This PD2STPRO executable finally generates the batch input file (*.std), which can be opened and viewed in STAAD.Pro.

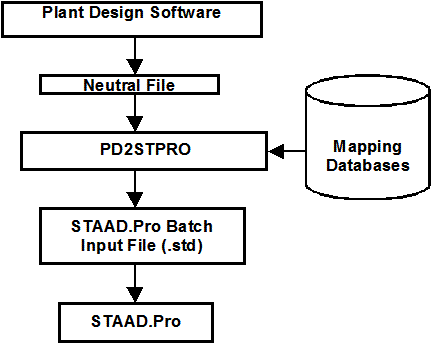

The execution sequence is as follows.

sst translator cadmatic to staad pro translator flowchart illustrating translation execution sequence

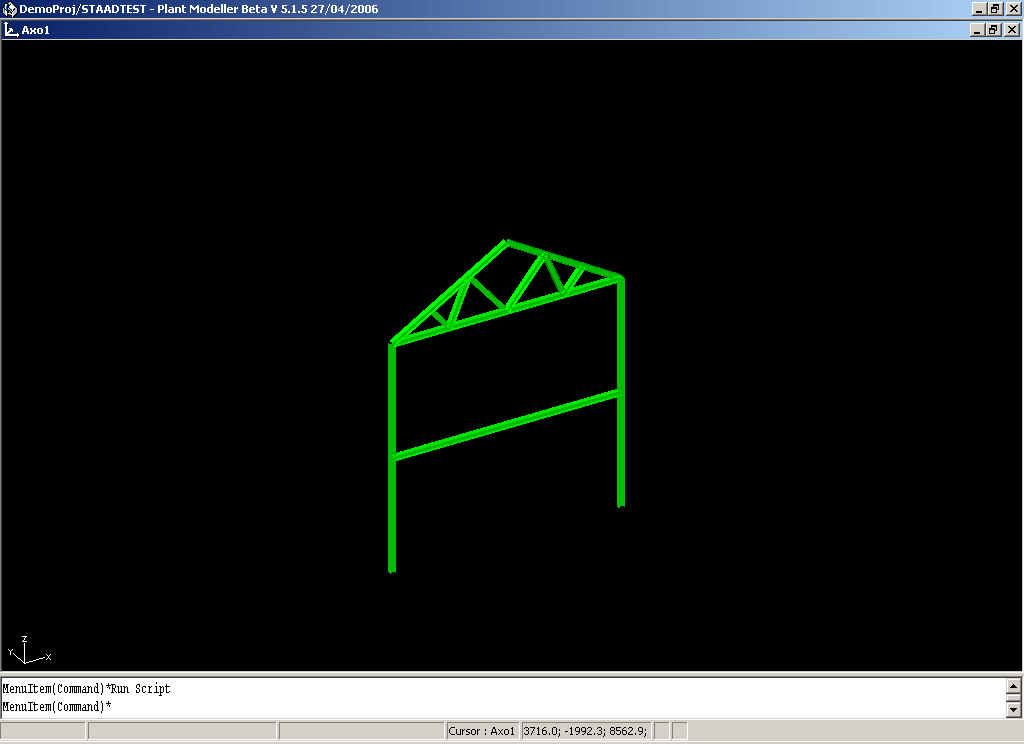

Structural layout in Cadmatic

sst cadmatic to staadpro translator structural model as seen in cadmatic graphic image 3

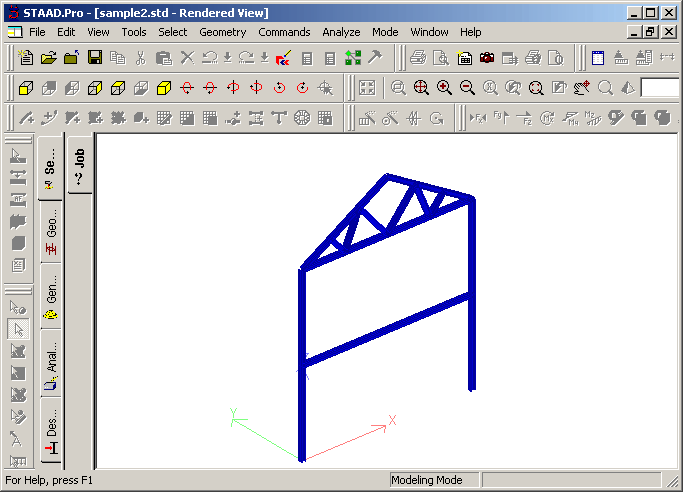

Analysis model in STAAD.Pro

sst cadmatic to staadpro analysis model as seen in staad pro after conversion graphic image 4

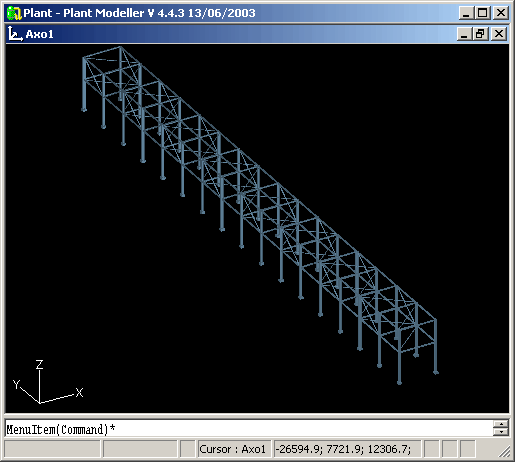

Structural layout in Cadmatic

sst cadmatic to staadpro translator structural model as seen in cadmatic graphic image 5

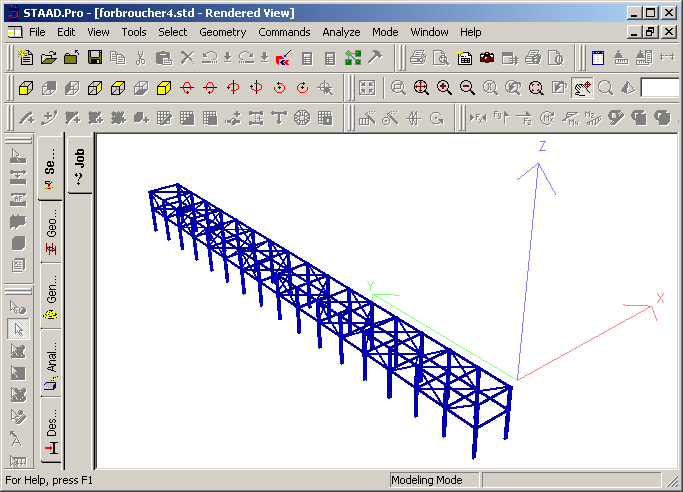

Analysis model in STAAD.Pro

sst cadmatic to staadpro analysis model as seen in staad pro after conversion graphic image 6

Salient Features of CADMATIC-to-STAAD.Pro Interface

  • Transfers one-dimensional, straight, prismatic structural sections from Plant Design software to STAAD.Pro with proper orientation & connection.
  • Provision to transfer the material properties through "Mapping DB".
  • For sections with non-standard shapes, relevant sectional properties can be fed through proper "Mapping DB"
  • Provision to transfer to the standard sections available in STAAD.Pro through "Mapping DB".
  • For non-standard sections with standard shapes such as I, channel, tee sections etc., the Interface calculates the required properties on its own. If desired, the user can overwrite the calculated properties through "Mapping DB".
  • Provision to transfer select members as Truss elements.
